Warehouse & Logistics

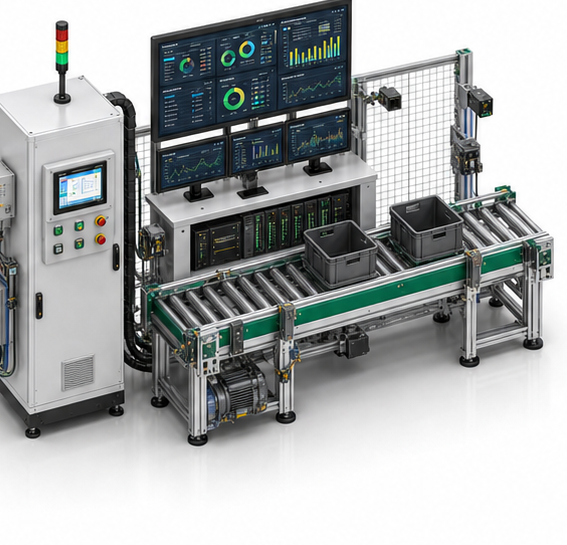

Warehouse Monitoring Dashboard
Warehouse Monitoring Dashboard helps warehouse & logistics teams connect warehouse execution and logistics visibility with practical PLC, HMI, SCADA, data collection, and dashboard integration.
Automation System Integrator
IoT & Machine Data
SCADA / MES Lite Ready
Start Consultation
Overview
Warehouse Monitoring Dashboard for Warehouse & Logistics
Warehouse Monitoring Dashboard is designed for Warehouse & Logistics teams that need warehouse execution and logistics visibility without adding unnecessary complexity to daily plant operation. Renbo approaches the solution as an automation system integrator: start from the machine and operator workflow, connect the right signals, then turn the data into screens and reports that production teams can actually use.
Operational Challenge
Warehouse movement can become hard to track when requests, locations, packing status, and WMS transactions are handled in separate places. The result is usually slower response, duplicated checking, and less confidence when supervisors need to understand what happened on the line.
Renbo Solution Scope
Renbo connects scan events, material requests, location updates, packing stations, and ERP or WMS data exchange into a practical execution layer.
- Scan station setup
- Warehouse dashboard
- Movement transaction mapping
- Integration checklist
System Architecture and Flow
The architecture is built around reliable field connectivity, clear operator interaction, and clean reporting data. A typical implementation can be shaped as follows:
Request or orderScan confirmationMovement updateWMS or ERP handover
Field LayerMachine, sensor, meter, scanner, or equipment signals are captured from the operating point.
Control LayerPLC, HMI, safety, or gateway logic organizes machine status, commands, alarms, and interlocks.
Data LayerProduction events, process values, quality records, or utility trends are stored for review.
Visibility LayerDashboards, reports, and integration endpoints support faster team response and clearer decisions.
Key Features
- Inbound, picking, packing, or outbound status view
- Barcode or RFID event capture
- Inventory movement history
- Exception and shortage visibility
- ERP / WMS integration support
Technologies
- Barcode / RFID
- WMS interface
- Dashboard
- SQL database
- API integration
Business Benefits
- Improves movement visibility across warehouse steps
- Supports faster response to shortages or exceptions
- Reduces manual handover reporting
Related Use Cases
- Inventory movement tracking
- Picking and packing execution
- Outbound dock monitoring
Consultation CTA
Renbo can help assess the current machine signals, operator workflow, integration needs, and dashboard expectations before defining a practical implementation roadmap for Warehouse Monitoring Dashboard.
Benefits
- Improves movement visibility across warehouse steps
- Supports faster response to shortages or exceptions
- Reduces manual handover reporting
Use Cases
- Inventory movement tracking
- Picking and packing execution
- Outbound dock monitoring
